Specifications – Large Boat Trailers in Canada

Load Rite AB Bunk Models
5 STARR AC Bunk Models
Load Rite Tandem SA Bunk Models
5 STARR V-Bunk Models
Load Rite AB Galv Tandem and Triaxle
Load Rite AR Roller Models
5 STARR AR Roller Models
Load Rite Tandem and Triaxle Roller Models
5 STARR Roller Models
Load Rite Ski Boat and Inboard Models – Single Axle
Load Rite Ski Boat and Inboard Models – Tandem Axle

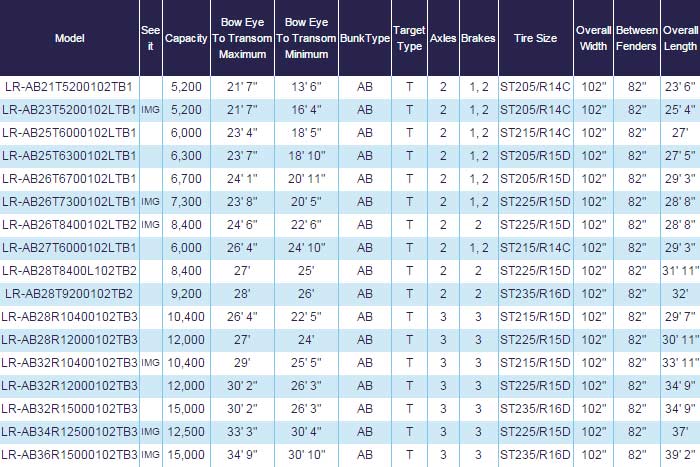

Load Rite AB Bunk Models


Model shown with optional aluminum wheels, Vortex hubs, spare tire and carrier, and plastic bunk covers.

Load Rite’s AB models are the finest, heavy-duty aluminum framed bunk trailers available. The proprietary I-beam design safely protects wiring and brake lines along the length of the frame, and incorporate fastener channels for axle and fender mounting that minimize unsightly u-bolts straddling the frame.

Load Rite’s bunk system provides the most adjustability and the best support of any bunk design on the market today, thoughtfully designed with space between the front and rear bunks to accommodate sling loading. Adjustable vertically and horizontally, the bunks provide dramatically improved support compared to the traditional solid wood bunks.

Add aluminum wheels and you’ve just specified the closest thing to a custom trailer available, and all priced to fit every boater’s budget.

Consult with your dealer to determine which options will best suit your intended use.

Trailers may be shown with optional equipment installed. Options may vary by model and region. Consult with your dealer.

Standard Features
  • Patented I-beam frame
  • Radial tires on torsion axles
  • LED lighting
  • Torsion axles on 102″ wide models
  • Disc brakes where installed
  • Carpeted pressure treated wood bunks
  • Steel bunk tube supports
  • Target bunks – 25′ and over
  • Aluminum diamondplate fenders
  • Aluminum fendersteps (models to 8,000 lb capacity)
  • Sideguides
  • Tongue jack
  • Drop-style tongue jack (tri-axles)
  • 2 Plus 3 Years Coupler to Taillight Warranty
Popular Options
  • Aluminum wheels
  • Radial tires on spring axles
  • High speed wheel balancing
  • Brakes on all axles (recommended)
  • Vortex Hubs*
  • Kodiak stainless steel disc brakes*
  • (*Vortex and Kodiak cannot be combined)
  • Drop-style tongue jack (tandems)
  • Quick-Slide® bunk covers
  • Bunks setup for Step Hull boats
  • Swing tongue
  • One-piece aluminum diamondplate fenders (tandems)
  • Heat shrunk wire splices
  • Stainless brakelines
  • Stainless hardware

Back to Top

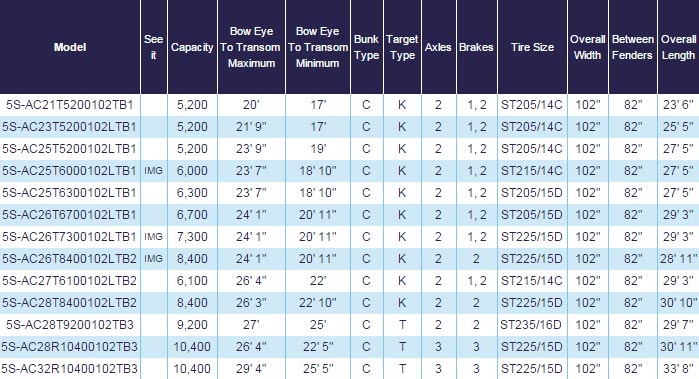

5 STARR AC Bunk Models


Sleek patented aluminum I-beam frame design with a simple to setup bunk system. Torsion axles and disc brakes are standard on all models. Lots of great options to add, yet still stay within your budget.

Trailers may be shown with optional equipment installed. Options may vary by model and region. Consult with your dealer.

Standard Features
  • Patented I-beam frame
  • Torsion axles (96″ and wider)
  • Bias-ply tires
  • Disc brakes where installed
  • Pressure treated wood bunks
  • Aluminum diamondplate fenders
  • Tongue jack
  • Drop-style tongue jack (tri-axle models)
  • 2 Plus 3 Years Limited Warranty
Popular Options
  • Aluminum wheels
  • Radial tires
  • High speed wheel balancing
  • LED lights
  • Heat shrunk wire splices
  • Brakes on all axles (recommended)
  • Vortex Hubs*
  • Kodiak stainless steel disc brakes*
  • (*Vortex and Kodiak cannot be combined)
  • Drop-style tongue jack (tandem axle models)
  • Quick-Slide® bunk covers
  • Target bunks
  • Stainless main frame hardware
  • Swing tongue
  • Stainless brakelines
  • One-piece fenders (tandem axle models)
  • Sideguides

Back to Top

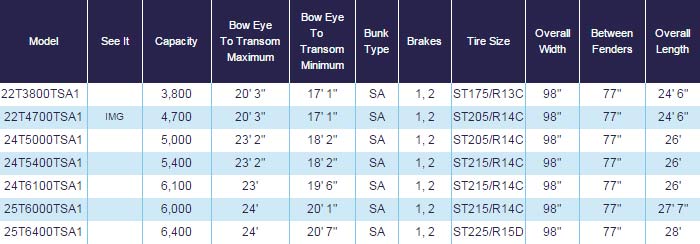

Load Rite Tandem SA Bunk Models


Load Rite’s SA® Bunk models offer a hybrid technology combining the articulation of a roller model with the hull contact area of a bunk, resulting in greater hull surface contact. The sturdy galvanized frame will offer years of service. Easy to load and launch, SA® Bunk models are a great alternative to both roller and traditional bunk models.

Trailers may be shown with optional equipment installed. Options may vary by model and region. Consult with your dealer.

Standard Features
  • Galvanized steel frame
  • LED lighting
  • Torsion axles
  • Disc brakes where installed
  • Radial tires
  • Carpeted pressure treated wood bunks
  • Aluminum diamondplate or plastic fenders
  • Tongue jack
  • 2 Plus 3 Years Coupler to Taillight Warranty
Popular Options
  • Spare tire and carrier
  • Aluminum wheels
  • High speed wheel balancing
  • Brakes on all axles (recommended)
  • Vortex Hubs*
  • Kodiak stainless steel disc brakes*
  • (*Vortex and Kodiak cannot be combined)
  • Drop-style tongue jack
  • Quick-Slide® bunk covers
  • 102″ overall width
  • One-piece aluminum fender
  • Stainless brakelines
  • Sideguides

Back to Top

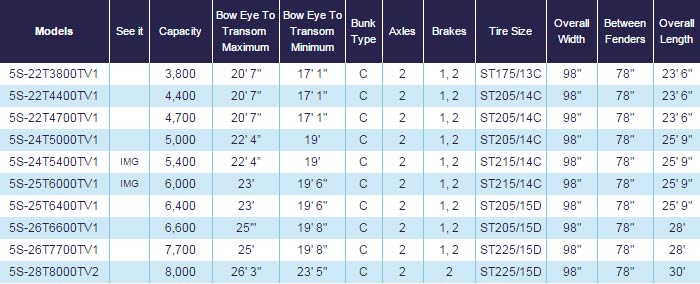

5 STARR V-Bunk Models


Simple to use and set up, easy to load and launch. Carpeted wood bunks atop a long lasting galvanized frame components and galvanized torsion axles with greasable hubs. Lots of great options to add, yet still stay within your budget.

Trailers may be shown with optional equipment installed. Options may vary by model and region. Consult with your dealer.

Standard Features
  • Galvanized steel frame
  • Torsion axles (96″ and wider)
  • Bias-ply tires
  • Disc brakes where installed
  • Pressure treated wood bunks
  • Aluminum diamondplate fenders
  • Tongue jack
  • 2 Plus 3 Years Limited Warranty
Popular Options
  • Aluminum wheels
  • Radial tires
  • High speed wheel balancing
  • LED lights
  • Heat shrunk wire splices
  • Brakes on all axles (recommended)
  • Vortex Hubs*
  • Kodiak stainless steel disc brakes*
  • (*Vortex and Kodiak cannot be combined)
  • Drop-style tongue jack
  • Quick-Slide® bunk covers
  • One-piece fenders (tandem axle models)
  • Stainless brakelines
  • Swing tongue
  • Sideguides

Back to Top

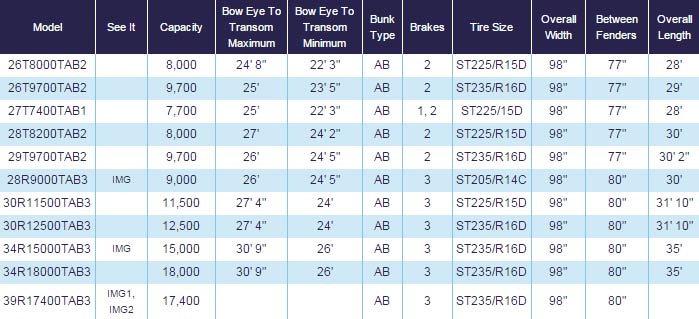

Load Rite AB Galv Tandem and Triaxle


TAB-Bunk models combine our galvanized steel bunk tube system from our aluminum models with a heavy duty galvanized steel frame. The result is simply the heaviest duty bunk trailer available. The bunk system provides the most adjustability and the best support of any bunk design of its size on the market today. Thoughtfully designed with space between the front and rear bunks to accommodate sling loading.

Adjustable vertically and horizontally, the bunks also pivot to conform to hull deadrise.

Add aluminum wheels and you’ve just specified a model that can handle the largest of trailerable boats.

Trailers may be shown with optional equipment installed. Options may vary by model and region. Consult with your dealer.

Standard Features
  • Galvanized steel frame
  • LED lighting
  • Torsion axles
  • Disc brakes where installed
  • Radial tires
  • Carpeted pressure treated wood bunks
  • Aluminum diamondplate or plastic fenders
  • Tongue jack
  • 2 Plus 3 Years Coupler to Taillight Warranty
Popular Options
  • Spare tire and carrier
  • Aluminum wheels
  • High speed wheel balancing
  • Brakes on all axles (recommended)
  • Vortex Hubs*
  • Kodiak stainless steel disc brakes*
  • (*Vortex and Kodiak cannot be combined)
  • Drop-style tongue jack
  • Quick-Slide® bunk covers
  • 102″ overall width (96″ wide models)
  • One-piece aluminum fender
  • Stainless brakelines
  • Sideguides

Back to Top

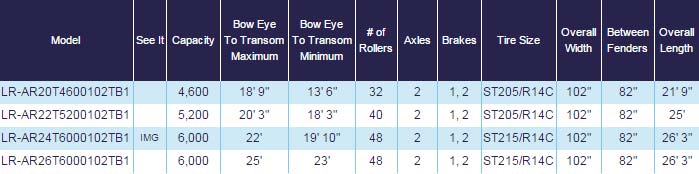

Load Rite AR Roller Models


Load Rite’s AR roller models are the finest, heavy-duty aluminum framed bunk trailers available. The proprietary I-beam design safely protects wiring and brake lines along the length of the frame, and incorporate fastener channels for axle and fender mounting that minimize unsightly u-bolts straddling the frame.

Load Rite’s patented TPR roller system offers the most articulation in the industry, allowing more roller to hull contact than the competition. The TPR roller surface will not mar hulls. And the patented roller bushing assures a smooth load and launch every time.

Available with a wide array of options, aluminum wheels make these models great looking, easy to use, and competitively priced.

Trailers may be shown with optional equipment installed. Options may vary by model and region. Consult with your dealer.

Standard Features
  • Patented I-beam frame
  • TPR rollers
  • Radial tires on torsion axles
  • LED lighting
  • Torsion axles on
  • Disc brakes on models equipped with brakes
  • Steel bunk supports
  • Aluminum diamondplate fenders
  • Aluminum fendersteps
  • Sideguides
  • Tongue jack
  • 2 Plus 3 Years Coupler to Taillight Warranty
Popular Options
  • Aluminum wheels
  • High speed wheel balancing
  • Brakes on all axles (recommended)
  • Vortex Hubs*
  • Kodiak stainless steel disc brakes*
  • (*Vortex and Kodiak cannot be combined)
  • Heat shrunk wire splices
  • Drop-style tongue jack
  • Swing tongue
  • Stainless brakelines
  • Stainless main frame hardware

Back to Top

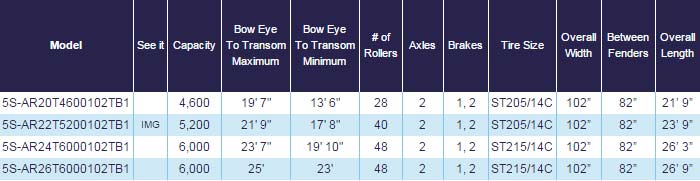

5 STARR AR Roller Models


Sleek patented aluminum I-beam frame design. Torsion axles and disc brakes are standard on all models. Featuring TPR (thermal plasticized rubber) rollers, smooth and non-marking. Lots of great add-on options, yet still stay within your budget.

Trailers may be shown with optional equipment installed. Options may vary by model and region. Consult with your dealer.

Standard Features
  • Patented I-beam frame
  • Torsion axles (96″ and wider)
  • Bias-ply tires
  • Disc brakes where installed
  • TPR rollers
  • Aluminum diamondplate fenders
  • Tongue jack
  • 2 Plus 3 Years Limited Warranty
Popular Options
  • Aluminum wheels
  • Radial tires
  • High speed wheel balancing
  • LED lights
  • Heat shrunk wire splices
  • Brakes on all axles (recommended)
  • Vortex Hubs*
  • Kodiak stainless steel disc brakes*
  • (*Vortex and Kodiak cannot be combined)
  • Drop-style tongue jack
  • Stainless main frame hardware
  • Swing tongue
  • Stainless brakelines

Back to Top

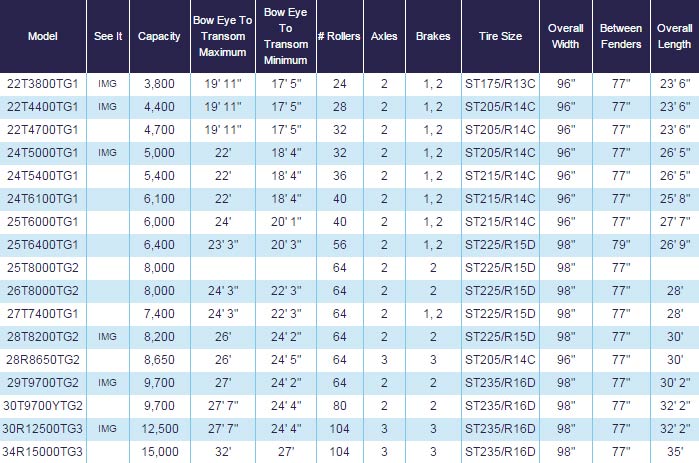

Load Rite Tandem and Triaxle Roller Models


Load Rite’s roller models are the easiest trailers to load and launch. Ideal for poor ramp and tidal conditions. A roller model will load and have you high and dry in conditions where a bunk model will leave you waiting for conditions to change.

The galvanized steel frame design is sturdy and long lasting, with stylish fenders and graphics accents. The tubular shape shrouds wiring and brake lines from damage during use.

Load Rite’s patented TPR roller system offers the most articulation in the industry, allowing more roller to hull contact than the competition. The TPR roller surface will not mar hulls. And the patented roller bushing assures a smooth load and launch every time.

Available with a wide array of options, aluminum wheels make these models great looking, easy to use, and competitively priced.

Trailers may be shown with optional equipment installed. Options may vary by model and region. Consult with your dealer.

Standard Features
  • Galvanized steel frame
  • LED lighting
  • Torsion axles
  • Disc brakes where installed
  • Radial tires
  • Fully articulated roller system
  • Thermo Plasticized Rollers
  • Aluminum diamondplate fenders
  • Tongue jack
  • 2 Plus 3 Years Coupler to Taillight Warranty
Popular Options
  • Spare tire and carrier
  • Aluminum wheels
  • High speed wheel balancing
  • Vortex Hubs*
  • Kodiak stainless steel disc brakes*
  • (*Vortex and Kodiak cannot be combined)
  • Heat shrunk wire splices
  • 102″ overall width
  • One-piece aluminum fender
  • Drop-style tongue jack
  • One-piece aluminum fender

Back to Top

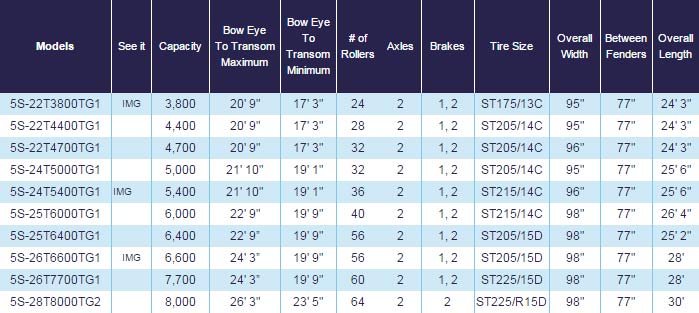

5 STARR Roller Models


Galvanized steel frames, galvanized torsion axles and disc brakes are standard. Featuring TPR (thermal plasticized rubber) rollers, smooth and non-marking. Lots of great options to add, yet still stay within your budget.

Trailers may be shown with optional equipment installed. Options may vary by model and region. Consult with your dealer.

Standard Features
  • Galvanized steel frame
  • Torsion axles (96″ and wider)
  • Bias-ply tires
  • Disc brakes where installed
  • TPR rollers
  • Aluminum diamondplate fenders
  • Tongue jack
  • 2 Plus 3 Years Limited Warranty
Popular Options
  • Aluminum wheels
  • Radial tires
  • High speed wheel balancing
  • LED lights
  • Heat shrunk wire splices
  • Brakes on all axles (recommended)
  • Vortex Hubs*
  • Kodiak stainless steel disc brakes*
  • (*Vortex and Kodiak cannot be combined)
  • Drop-style tongue jack
  • Swing tongue
  • One-piece fenders (tandem axle models)
  • Stainless brakelines

Back to Top

Load Rite Ski Boat and Inboard Models – Single Axle

Designed for inboard boats to accommodate and protect screw and rudders. The proprietary I-beam design safely protects wiring and brake lines along the length of the frame, and incorporate fastener channels for axle and fender mounting that minimize unsightly u-bolts straddling the frame.

Load Rite’s bunk system provides the most adjustability and the best support of any bunk design on the market today, thoughtfully designed with space between the front and rear bunks to accommodate sling loading. Adjustable vertically and horizontally, the bunks provide dramatically improved support compared to the traditional solid wood bunks.

Trailers may be shown with optional equipment installed. Options may vary by model and region. Consult with your dealer.

Standard Features
  • Patented I-beam frame
  • Dropped rear crossbar for inboard
  • Radial tires on torsion axles
  • LED lighting
  • Torsion axles
  • Disc brakes where installed
  • Carpeted pressure treated wood bunks
  • Steel bunk supports
  • Target bunks
  • Aluminum diamondplate fenders
  • Aluminum fendersteps
  • Tongue jack
  • 2 Plus 3 Years Coupler to Taillight Warranty
Popular Options
  • Spare tire and carrier
  • Aluminum wheels
  • High speed wheel balancing
  • Vortex Hubs*
  • Kodiak stainless steel disc brakes*
  • (*Vortex and Kodiak cannot be combined)
  • Drop-style tongue jack
  • Quick-Slide® bunk covers
  • Heat shrunk wire splices
  • Sideguides
  • Swing tongue
  • Stainless brakelines
  • Stainless main frame hardware

Back to Top

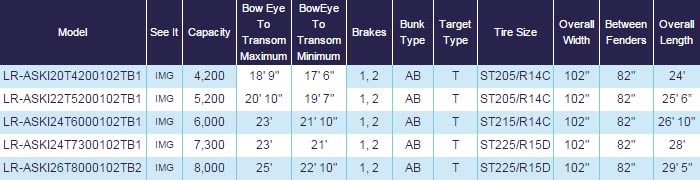

Load Rite Ski Boat and Inboard Models – Tandem Axle

Designed for inboard boats to accommodate and protect screw and rudders. The proprietary I-beam design safely protects wiring and brake lines along the length of the frame, and incorporate fastener channels for axle and fender mounting that minimize unsightly u-bolts straddling the frame.

Load Rite’s bunk system provides the most adjustability and the best support of any bunk design on the market today, thoughtfully designed with space between the front and rear bunks to accommodate sling loading. Adjustable vertically and horizontally, the bunks provide dramatically improved support compared to the traditional solid wood bunks.

Trailers may be shown with optional equipment installed. Options may vary by model and region. Consult with your dealer.

Standard Features
  • Patented I-beam frame
  • Radial tires on torsion axles
  • LED lighting
  • Torsion axles on 102″ wide models
  • Disc brakes where installed
  • Carpeted pressure treated wood bunks
  • Steel bunk supports
  • Target bunks
  • Aluminum diamondplate fenders
  • Aluminum fendersteps (models to 8,000 lb capacity)
  • Sideguides
  • Tongue jack
  • 2 Plus 3 Years Coupler to Taillight Warranty
Popular Options
  • Spare tire and carrier
  • High speed wheel balancing
  • Aluminum wheels
  • Brakes on all axles (recommended)
  • Vortex Hubs*
  • Kodiak stainless steel disc brakes*
  • (*Vortex and Kodiak cannot be combined)
  • Drop-style tongue jack
  • Quick-Slide® bunk covers
  • Heat shrunk wire splices
  • Swing tongue
  • Stainless brakelines
  • Stainless main frame hardware

Back to Top
